InteliJet LP PRO

Wide-Format Thermal Inkjet 4.0 Printer

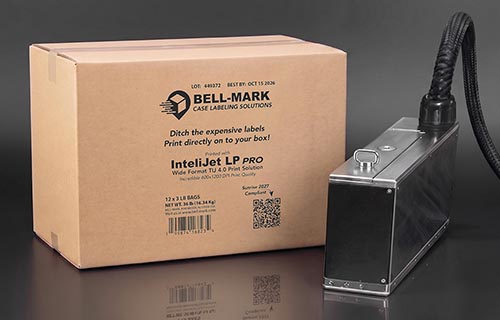

InteliJet LP Pro with a printed corrugated case

The New Standard in Wide-Format
Case Coding & Digital Converting

Ditch expensive labels and rigid print plates. Print high-resolution, wide-format graphics and data-rich barcodes directly onto your packaging at full production speeds. The InteliJet LP PRO brings next-generation Thermal Inkjet (TIJ 4.0) technology to large-scale applications. Featuring a native 108mm (4.25”) print height that is expandable up to 216mm (8.5”), this system gives you the freedom to print tall, seamless branding, compliant logistics coding, and variable data on demand at significantly lower costs than previous thermal inkjet technology.

Key Benefits at a Glance

Benefits 01 - Large Print Area

Large Print Coverage

New large-format print heads provide up to 108mm (4.25") total print width per head. Expandable to 216mm (8.5") with two stitched print heads for tall, seamless graphics.

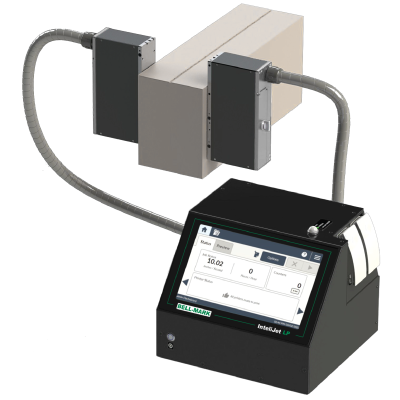

Benefits 02 - Dual Side Printing

Multi-Side Printing

Maximize efficiency by utilizing dual print heads to print simultaneously on two sides of a box, all controlled and synchronized by a single HMI.

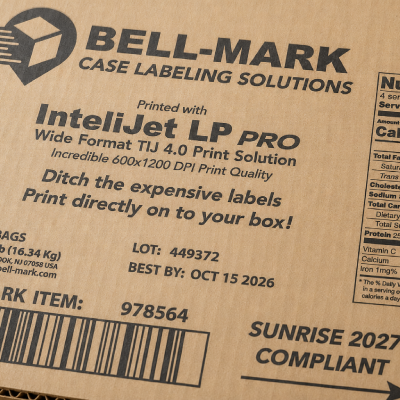

Benefits 03 - Incredible print quality

Incredible Print Quality

Achieve razor-sharp, high-definition output with resolution reaching up to 600x1200 DPI for crisp alphanumeric text and complex graphics.

Benefits 04 - Ultra-Fast Print Speeds

Ultra-Fast Print Speeds

Keep up with your fastest production lines. Reach blazing speeds up to 183 m/min (600FPM) with an increased throw distance, double the performance of TIJ 2.5.

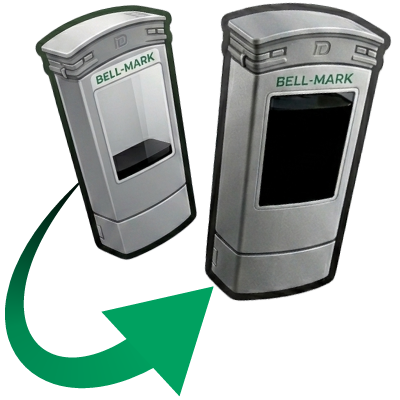

Benefits 05 - Maximize Uptime

Maximize Uptime

High-capacity ink tanks drastically reduce the frequency replacing of cartridge changeouts, and are "hot-swappable", allowing you to refill ink without any interruption.

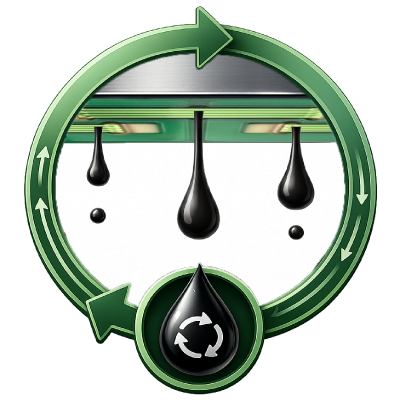

Benefits 06 - Micro-Recirculation

Ink Micro-Recirculation

Continuous ink motion within the printhead eliminates nozzle clogs and "decap" issues to help reduce maintenance and maintain maximum print quality, even after periods of inactivity.

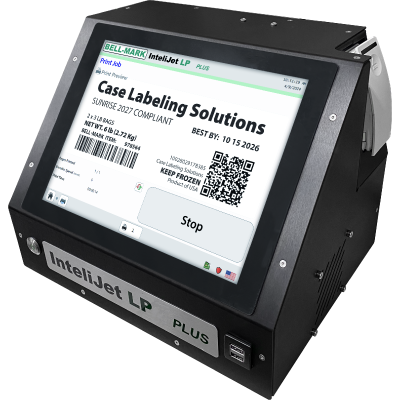

Benefits 07 - Production Agility

Eliminate Print Plates

Modify your print layouts instantly right from the production floor using the HMI's label creation software. Connect to a database or Hot Folder for an automated workflow.

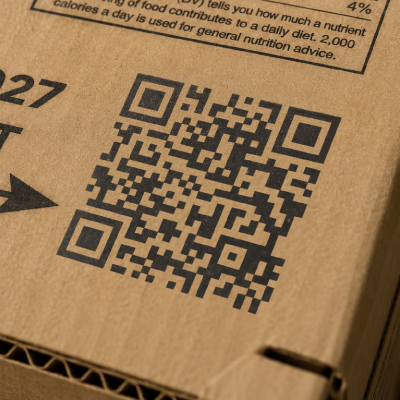

Benefits 08 - Eliminate Print Plates

Future-Proof Compliance

Stay ahead of evolving industry regulations. The LP Pro effortlessly handles all types of high-density barcodes such as those required for Sunrise 2027.

Next-Gen TIJ 4.0 Technology

The InteliJet LP Pro bridges the gap between high-resolution printing and industrial-scale speed, driven by an advanced architecture that easily outclasses older printing standards. The LP Pro utilizes HP TIJ 4.0 technology, representing a multi-generational leap forward.

LP Pro - 2 Stitched Print Heads printing a repeating pattern on paper

Next-Gen Print Heads vs. Legacy TIJ 2.5

Traditional TIJ 2.5 systems were limited by narrow print heights and shorter throw distances, often requiring complex stitching arrays and forcing printer heads dangerously close to moving substrates. The TIJ 4.0 108mm (4.25”) print heads output tall, seamless images without the misalignment risks of older multi-head setups. Combined with a significantly expanded throw distance, the LP Pro provides a safer clearance from your packaging substrate which prevents accidental substrate contact, preserves hardware longevity, and maintains incredible print clarity.

Best of all, every single cartridge delivers a brand-new print head, guaranteeing continuous, factory-peak performance without the added maintenance costs.

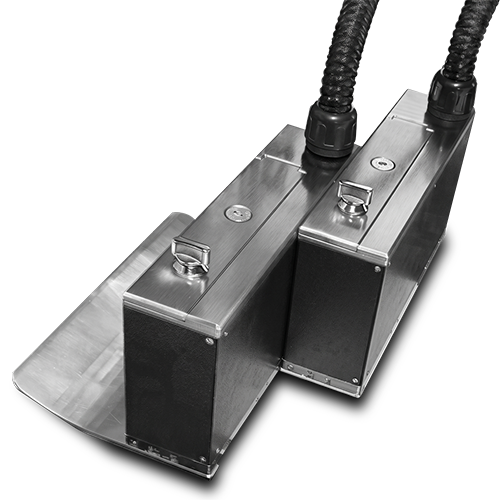

LP Pro - 2 Stitched Print Heads

Advanced Micro-Recirculation

In typical production environments, intermittent line stops cause ink to dry out at the nozzle tip, a headache known as a "decap" issue. The LP Pro solves this natively via built-in micro-recirculation technology.

By keeping ink in constant, microscopic motion behind the nozzles during periods of inactivity, the system prevents drying, scaling, and clogging. Whether your line pauses for a few minutes or a few hours, the first print after a restart is just as sharp, clean, and perfectly formed as the last, drastically reducing manual operator maintenance.

LP Pro - Micro Recirculation Diagram

Economical Ink Solutions

Traditional small-scale ink cartridges eat away at profitability through high per-milliliter costs and continuous physical swap-outs. The InteliJet LP Pro is deliberately engineered for high-volume, bulk industrial operations.

The system utilizes high-capacity, dual 775ml bulk ink tanks. This massive reservoir dramatically reduces your total cost of ownership by lowering ink-per-print costs to a fraction of traditional cartridge pricing. To achieve a zero-downtime manufacturing lifecycle, the dual tanks feature hot-swappable connectivity. When one tank runs empty, the system automatically draws from the second tank, giving operators ample time to snap a new bulk cartridge into place in seconds, without interrupting the active print cycle.

LP Pro - Ink Tank & Ink Cartridge

Centralized Control: Print Controller & HMI

Managing the print system is seamless thanks to the fully integrated print controller and Touchscreen HMI. Powered by Bell-Mark enterprise-level Vega software, the controller interface features an incredibly powerful, intuitive, and simple-to-use workspace that adapts effortlessly to any production environment.

LP Pro HMI with print head printing on case

Real-Time Monitoring & Control

The HMI gives operators a centralized dashboard to command the print heads and observe live performance metrics.

  • Control All Print Heads: Manage multi-side print configurations or adjust the alignment of stitched heads for wide-format print jobs.
  • Monitor Production Parameters: Keep a constant eye on critical system alerts, line throughput information, and exact ink levels in real time.

Print Template Creation Software

Powered by the latest Vega platform, the built-in software delivers a highly intuitive workspace for on-the-fly label design. The layout environment easily supports static elements and dynamic data, allowing you to build compliant layouts using variable data, graphics, and all types of linear and 2D barcodes that can be generated from your variable data.

LP Pro - Technician operating HMI touchscreen

InteliJet LP Pro PLUS

For users requiring advanced security, automated workflows, or strict regulatory validation, the HMI can be upgraded to the LP Pro PLUS package to unlock premium operational capabilities.

  • 21 CFR Part 11 & Full Audit Trail: Tailored specifically for regulated environments like pharmaceuticals and medical device manufacturing. The system logs an unalterable, comprehensive record of all user actions and system events to guarantee data integrity and accountability.
  • Windows Hot Folder Automation: Streamline your workflow. Operators can drop standardized print files into a designated network server folder, allowing the printer to automatically pull, process, and execute print jobs instantly.
  • Remote Digital Support: Features integrated TeamViewer Access, allowing Bell-Mark's remote tech team to tap into the HMI for instant troubleshooting, diagnostics, and guided support to help eliminate downtime.
  • On-Demand Video Help System: This built-in help ecosystem features step-by-step "How-To" maintenance and operation videos right on the touchscreen, putting training directly in front of the operator.
LP Pro Plus - Advanced HMI Print Controller
