InteliJet TSi

Thermal Inkjet Printer

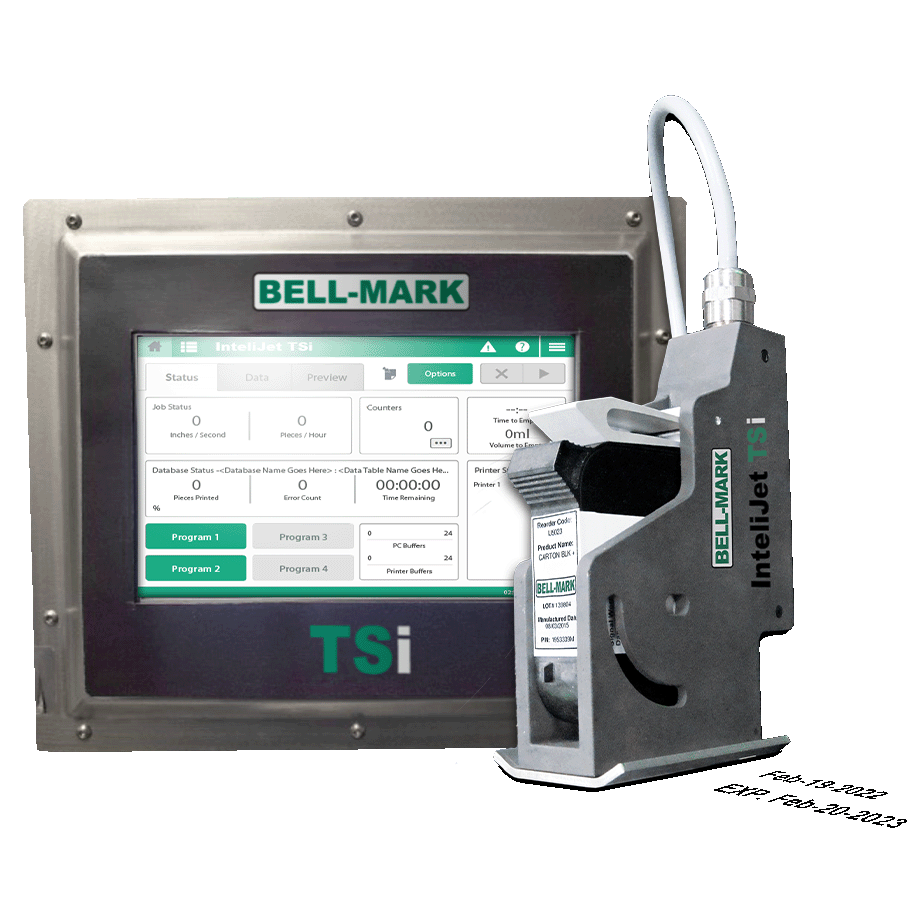

InteliJet TSi thermal inkjet printer
Conveyor Mount - Printing on Plastic Bottles
Mounted to Horizontal Pouch Seal Machine
Conveyor Mount - Printing on Cardboard Box
Mount to a Labeler
Mounted to a Continuous Motion Flow Wrapper
InteliJet TSi thermal inkjet printer
Conveyor Mount - Printing on Plastic Bottles
Mounted to Horizontal Pouch Seal Machine
Conveyor Mount - Printing on Cardboard Box
Mount to a Labeler
Mounted to a Continuous Motion Flow Wrapper

Features

The InteliJet TSi print heads are manufactured with an all metal design, providing maximum durability. The TSi comes complete with:

  • 1/2" (12.7mm) print head
  • 7" (178mm) color touch screen with VEGA label creation and management software installed
  • Power supply
  • Connection cables
  • VESA pivot mount
  • Printgo sensor

We offer a wide range of inks including opague white and yellow inks!

Affordable, High-quality Printing

The InteliJet TSi thermal inkjet printer offers the newest thermal technology in a low cost, high performance print solution for coding and marking applications. The simple, yet extremely versatile design allows you to easily replace your CIJ printer at a fraction of the cost. Install yourself and be running production within minutes!

Using BELL-MARK's proven and highly reliable print solutions based on HP technology, the InteliJet TSi is the ideal product for serialization, barcodes, and human readable printing.

  • No mess, no maintenance HP and BELL-MARK technology
  • ZERO Maintenance
  • Rugged industrial design for the most demanding installations
  • Easily fits new or retrofit machinery - simply bolt on to packaging equipment
  • Variable and fixed data capability
  • Onboard job creation

Click here to download the InteliJet TSi Brochure

Specifications

Print Technology Thermal Inkjet (TIJ)
Max Print Height 1/2" (12.7mm)
Printable Items EAN-13/EAN-8, UPC-A, Code 128, ITF-14, ITF-2 of 5, Code39, Crypot-code, GS1 Datamatrix, QR (114 barcode support included)
Print Speeds Up to 500 ft/min (152 m/min) @ 300 DPI
Print Resolution 600/600 DPI max
Print Density User Configurable
Ink Types Aqueous and Solvent
Bulk Ink Available Yes
Connectivity Ethernet, I/O, Sensor, Encoder
Voltage 115V to 240V
Software Included VEGA Label Creation
Languages English, French, German, Spanish

Advanced User Interface

InteliJet TS Uno Screen

The 7" (178mm) color touchscreen HMI offers a powerful user interface which enables users to monitor a wide array of operating conditions such as job types and counts. SmartChip ink management technology automatically track the ink usage and cartridge type in real time.

The HMI includes label creation software. Use the touch screen to easily preview and create print templates or import them via an ethernet connection or a USB thumb drive.
